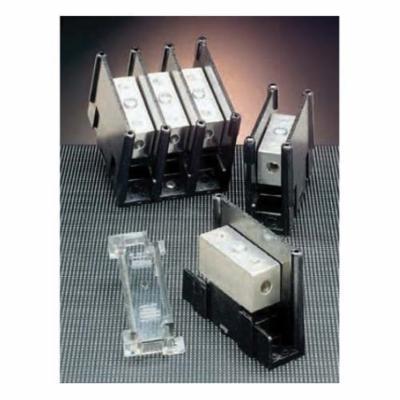

Mersen 68103 68000 Box to Box Termination Power Distribution Block, 600 VAC, 760 A, 3 Poles, 4 AWG to 500 kcmil Line, 14 to 2/0 AWG Load Wire, Polycarbonate


Description

Mersen Power Distribution Block, Box to Box Termination, Series: 68000, 600 VAC, 760 A, 3 Poles, 2 Primary Connections/Pole, 6 Secondary Connection/Pole, 4 AWG to 500 kcmil Line, 14 to 2/0 AWG Load Wire, 100 kA Short Circuit Current Rating, Polycarbonate, Tin Plated, Black, 5.35 in H x 7.81 in W x 3.91 in D

Ferraz Shawmut Power Distribution Blocks afford a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point. Power block options include up to 7 primary connections with up to 30 secondary connections.

Features

  • Adder poles with a variety of terminations can be combined to match special wire size combinations
  • 75 deg C temperature rating (copper wire)

Specifications

UNSPSC: 39122100

Country of Origin: United States of America (the)

Type
Box to Box Termination
Number of Poles
3
Color
Black
Voltage Rating
600 VAC
Short Circuit Current Rating
100 kA
Dimensions
5.35 in H x 7.81 in W x 3.91 in D
Secondary Connection/Pole
6
Series
68000
Material
Polycarbonate
Primary Connections/Pole
2
Finish
Tin Plated
BABA Compliant
No
Amperage Rating
760 A
Wire Size
4 AWG to 500 kcmil Line, 14 to 2/0 AWG Load
