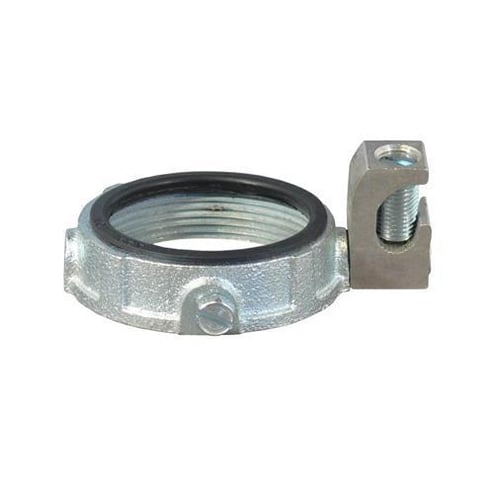

Appleton® GIB-150L-4AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 14 to 4 AWG AC Cable, 1-1/2 in Trade, Malleable Iron, Zinc Electroplated
Appleton® GIB-150L-4AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 14 to 4 AWG AC Cable, 1-1/2 in Trade, Malleable Iron, Zinc Electroplated
MPN GIB-150L-4AC
ASPN EGSGIB150L4AC
UPC 781381091145
Description
Features
- Provides a compact means of grounding conduit through an insulated bushing
- Can be used with a locknut to terminate conduit at an enclosure
- Lug used to connect bonding jumper to a neutral bus bar
- Insulating liner material is self extinguishing
- The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation
- Lugs not sold separately
- Provided with a steel, zinc plated set screw allowing fitting to lock bushing in any desired position
- Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
Specifications
GTIN: 00781381091145
UNSPSC: 39121312
Country of Origin: Mexico
| AC Cable Size | 14 to 4 AWG |
|---|---|
| Trade Size | 1-1/2 in |
| Dimensions | 2.31 in Dia x 0.69 in H |
| Insulated/Non-Insulated | Insulated |
| Series | GIB-L-AC |
| Material | Malleable Iron |
| Finish | Zinc Electroplated |
| Temperature Rating | 302 deg F |
| BABA Compliant | No |
| Sold as | EACH |
