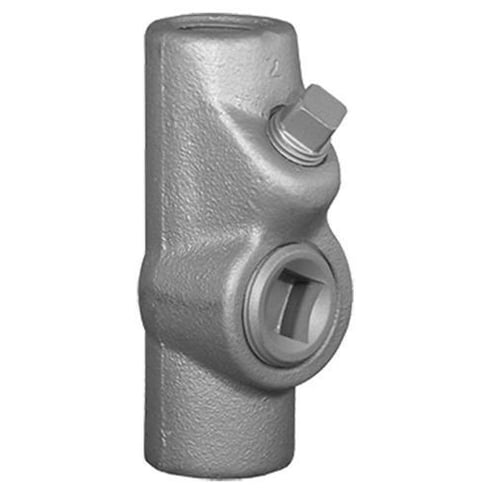

Appleton® UNILETS® EYF100-AL Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated
Appleton® UNILETS® EYF100-AL Dust-Ignitionproof Explosionproof Raintight Conduit Sealing Fitting, 1 in, For Use With IMC/Threaded Rigid Metallic Conduit, Almag 35 Aluminum, Epoxy Powder Coated
MPN EYF100-AL
ASPN EGSEYF100AL
UPC 781381599993
Description
Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub
- Restrict any explosion to the sealed off enclosure
- Required in Class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures
- Required in Class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps
- Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location
- Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit, seal must be located within 18 in of either enclosure
- Required where cables which exceed rate of gas or vapor transmission permitted for seals are used in Class I, Division 2 locations
- 25% fill vertical and horizontal conduit sealing fittings for close turning radius
Specifications
GTIN: 00781381599993
UNSPSC: 39121311
Country of Origin: Mexico
| Type | Dust-Ignitionproof Explosionproof Raintight |
|---|---|
| Suitable For Use With | IMC/Threaded Rigid Metallic Conduit |
| Size | 1 in |
| Series | EY Series |
| Finish | Epoxy Powder Coated |
| BABA Compliant | No |
| Material | Almag 35 Aluminum |
| Dimensions | 4-1/4 in L x 1-3/4 in W |
| Sold as | EACH |
