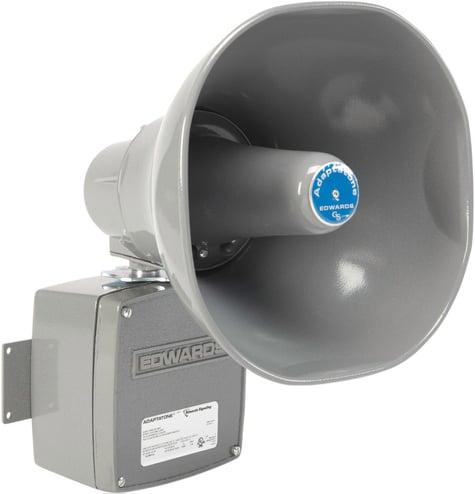

Edwards Signaling™ Adaptatone® 5531MHV-120Y6 Millennium Multi-Tone Signal, 50/60 Hz, 123/113 dB


Description

Edwards Signaling™ Adaptatone® Multi-Tone Signal, Millennium, Series: 5531MHV, 50/60 Hz Frequency Response, 123/113 dB Sound Level, Specifications Met: UL 464, 1604, Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G, Class III Hazardous Locations cUL C22.2 No. 205, cULus Listed, Surface Mounting, Specifications: 0.32 to 0.2/0.21 to 0.1 A, 120 to 240/125 to 250 VAC/VDC, Gray, 15 in H x 9-3/4 in W x 11-1/2 in D

The Edwards 5531MHV series Adaptatone millennium is a high volume, 30 W heavy duty industrial signaling device capable of producing volume-controlled, high-decibel tones. Four tones can be activated from field-wired, normally open contacts, or a 24 VDC or 120 VAC external voltage source such as the output of a PLC. The unit uses a micro-processor circuit to create 55 distinctive tones, selected by setting miniature dip switches within the unit. The tones programmed operate on a pyramid-type priority system in which a switch with a programmed tone takes priority over all switches that follow it.

Features

  • 55 tone capability - no additional tone modules needed
  • PLC compatible
  • Suitable for division 2 locations
  • Captive components
  • Built-in cascading priority system
  • Speaker can be rotated and locked in any horizontal direction
  • 24 VDC battery backup terminals

Specifications

GTIN: 00782640280218

UNSPSC: 46171606

Country of Origin: United States of America (the)

Type
Millennium
Sound Level
123/113 dB
Color
Gray
Specifications
0.32 to 0.2/0.21 to 0.1 A, 120 to 240/125 to 250 VAC/VDC
Dimensions
15 in H x 9-3/4 in W x 11-1/2 in D
Mounting Type
Surface
Frequency Response
50/60 Hz
Series
5531MHV
Specifications Met
UL 464, 1604, Class I, Division 2, Groups A, B, C, D, Class II, Division 2, Groups F, G, Class III Hazardous Locations cUL C22.2 No. 205, cULus Listed
BABA Compliant
No
Sold as
EACH
