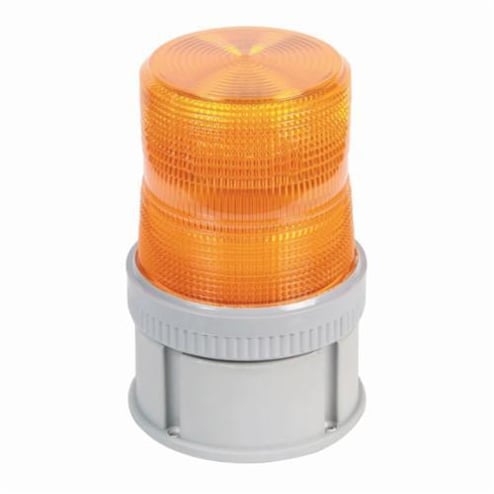

Edwards Signaling™ 105FINHA-N5 105 Flashing Beacon, 120 VAC, Halogen Lamp, 4-12 in Dia, Panel Mount, Amber Lens


Description

Edwards Signaling™ Flashing Beacon, Series: 105, 120 VAC, 0.2 A, 25 W, 4-1/2 in Dia, Halogen Lamp, Amber Lens, 65 fpm Flash, 20000 hr Average Life, Panel Mount, NEMA 4X, Thermoplastic Polyester Resin Base/Polycarbonate Lens Housing, 4-5/8 in H

The Edwards 105 Series are heavy duty beacons designed for use in industrial applications where a corrosion resistant Type 4X enclosure is required. The housing is manufactured from glass reinforced thermoplastic polyester resin and incorporates brass hardware. The double Fresnel lens is made of polycarbonate. All light sources are supplied as UL listed component assemblies-ready to be attached to the selected mounting base.

Features

  • For outdoor use, lens should face up
  • Glass reinforced thermoplastic polyester resin base, shatter resistant double fresnel polycarbonate lens

Specifications

GTIN: 00782640266847

UNSPSC: 39111706

Country of Origin: United States of America (the)

Wattage
25 W
Voltage Rating
120 VAC
NEMA Rating
NEMA 4X
Flash Rate
65 fpm
Dimensions
4-5/8 in H
Average Life
20000 hr
Lamp Type
Halogen
Housing Material
Thermoplastic Polyester Resin Base/Polycarbonate Lens
Mounting Type
Panel
Series
105
Amperage Rating
0.2 A
Diameter
4-1/2 in
BABA Compliant
No
Lens Color
Amber
Sold as
EACH
