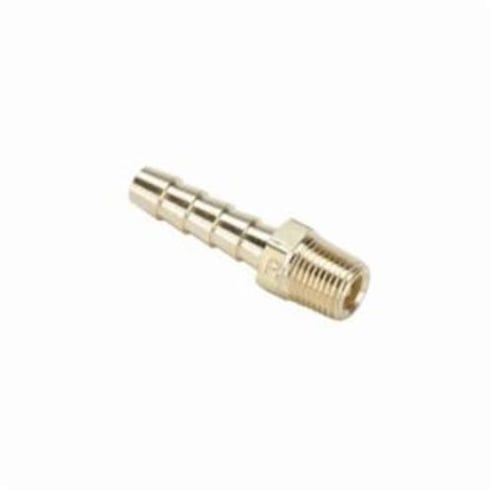

Parker® 125HBL-6-8 Hose-to-Pipe Connector, 3/8 x 1/2 in Nominal, Barb x MPT End Style, Brass


Description

Parker® Hose-to-Pipe Connector, Series: 125HBL, Fitting/Connector Type: Adapter, 3/8 x 1/2 in Nominal, Barb x MPT End Style, 7/8 in Hex, 150 psi Pressure, -40 to 160 deg F, Brass, 1.97 in L

Parker's hose barb fittings are an economical choice for general purpose fluid handling and pneumatics. Manufactured in both tapered and beaded hose barb styles hose barbs are reusable and offer good vibration resistance. These hose barb fittings are intended for use with Parker's 97HC hose clamps, similar type clamps or a crimped ferrule. Parker's hose barb fittings are available for both inch and metric size hoses with NPTF, BSPT, SAE straight thread and metric threads.

Features

  • Beaded hose barb to straight thread port connections
  • Up to 1 in hose, -14 SAE and M33
  • Eliminates system contamination from rust
  • One piece forging
  • Smaller than J1231 steel alternatives for use in confined areas
  • Designed for water, coolant and compressed air media
  • Rubber hose and GPH hose tubing material
  • Fluorocarbon O-ring material
  • Clamp or crimped ferrule must be used with fittings
  • 0.281 in flow diameter

Specifications

UNSPSC: 40141734

BABA Compliant
No
Nominal Size
3/8 x 1/2 in
Material
Brass
Pressure Rating
150 psi
Fitting/Connector Type
Adapter
Weight
10.1 lbs
Temperature Rating
-40 to 160 deg F
Series
125HBL
End Style
Barb x MPT
Dimensions
1.97 in L
Hex Size
7/8 in
Sold as
25/PK
