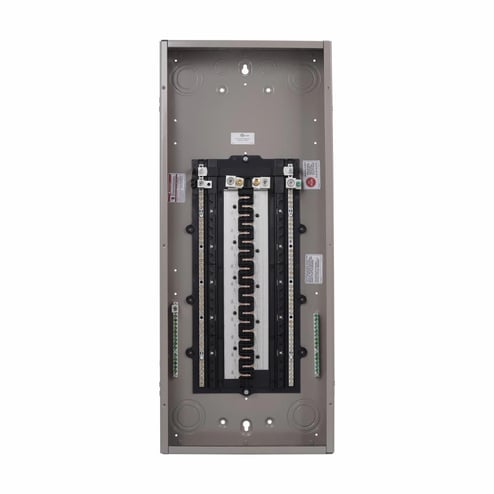

EATON CHP42L225X6 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 VAC, 225 A, 1 Poles, 25 kA Interrupt


Description

EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt, 84 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X6 Enclosure Box, Sheet Steel Housing, 34.12 in L x 14.31 in W x 3.88 in H

Eaton’s CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.

Features

  • Quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • Type CH circuit breakers trip to the Off position eliminating nuisance callbacks
  • The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions

Specifications

GTIN: 00786689055202

UNSPSC: 39121101

Country of Origin: United States of America (the)

Wire Size
4 AWG to 300 kcmil
Interrupt Rating
25 kA
Wiring Configuration
3-Wire
Number of Poles
1
Voltage Rating
120/240 VAC
Number of Spaces
42
Breaker Mounting
Plug-On Neutral
Breaker Type
CH/CHP
Enclosure Type
NEMA 1
Dimensions
34.12 in L x 14.31 in W x 3.88 in H
Housing Material
Sheet Steel
Mounting Type
Plug-On
Number of Circuits
84
Amperage Rating
225 A
BABA Compliant
No
Enclosure Box Size
X6
Type
1-Phase Insulated/Bondable Split Standard
Sold as
EACH
