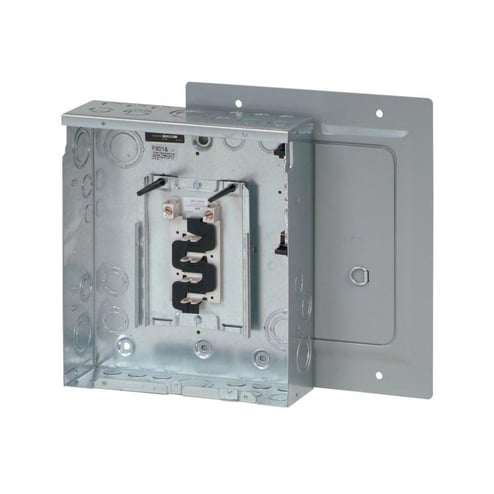

EATON BR816L125FDP 1-Phase Split Main Lug Loadcenter, 120/240 VAC, 125 A, 16 Poles, 10 kA Interrupt


Description

EATON Main Lug Loadcenter, 1-Phase Split, 120/240 VAC, 125 A, 16 Pole, 10 kA Interrupt, 16 Circuits, BR Breaker, 3-Wire Wiring Configuration, 8 Spaces, 14 to 1 AWG Cu/Al Wire, Flush Mount, NEMA 1, NEMA 7 Enclosure Box, 3.56 in L x 11 in W x 13 in H

Load centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

Features

  • Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
  • Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
  • 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
  • Standard 14-3/8 in W enclosures fit snugly between wall studs
  • Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
  • BR load centers feature Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
  • Indoor enclosure
  • Copper aluminum wire at 60 to 75 deg C for main lugs
  • Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
  • Dual grounds, current design

Specifications

GTIN: 00786676001434

UNSPSC: 39121101

Country of Origin: United States of America (the)

Wire Size
14 to 1 AWG Cu/Al
Interrupt Rating
10 kA
Wiring Configuration
3-Wire
Number of Poles
16
Voltage Rating
120/240 VAC
Enclosure Type
NEMA 1
Dimensions
3.56 in L x 11 in W x 13 in H
Mounting Type
Flush
Amperage Rating
125 A
BABA Compliant
No
Number of Circuits
16
Breaker Type
BR
Number of Spaces
8
Enclosure Box Size
NEMA 7
Type
1-Phase Split
Sold as
EACH
