Description

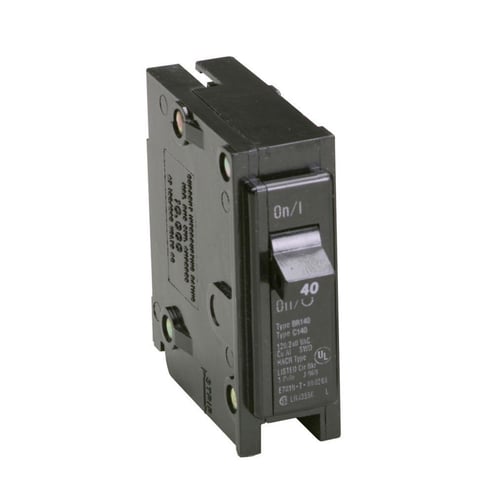

EATON Circuit Breaker, Type BR, 120/240 VAC, 40 A, 10 kA Interrupt, LI Trip, 1 Pole, 1 ph, Handle Actuator, 14 to 4 AWG Wire, Plug-On Mount, 40 deg C, 3 in L x 1 in W x 3 in H
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
Features
- All BR circuit breakers have rejection tab feature
- Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
- Standard interrupting capacity
- 1-pole requires one 1 in space
Specifications
GTIN: 00786676362252
UNSPSC: 39121601
Country of Origin: United States of America (the)
| Type | Type BR |
|---|---|
| Trip Type | Thermal Magnetic |
| Wire Size | 14 to 4 AWG |
| Interrupt Rating | 10 kA |
| Number of Poles | 1 |
| Voltage Rating | 120/240 VAC |
| Actuator Type | Handle |
| Dimensions | 3 in L x 1 in W x 3 in H |
| Mounting Type | Plug-On |
| Phase | 1 |
| Amperage Rating | 40 A |
| Temperature Rating | 40 deg C |
| BABA Compliant | No |
| Sold as | EACH |
