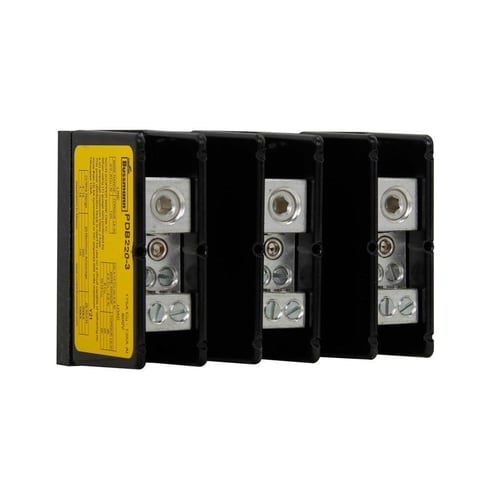

Bussmann PDB220-3 Barrier Power Distribution Block, 600 VAC/VDC, 175 A, 3 Poles, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Aluminum


Description

Bussmann Power Distribution Block, Barrier, Series: PDB, 600 VAC/VDC, 175 A, 3 Pole, (1) Box Lug Primary Connections/Pole, (4) Box Lug Secondary Connection/Pole, 8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load Wire, Class CC Fuse, 100/200 kA Short Circuit Current, Aluminum, Tin Plated, Black, 2.88 in L x 4.27 in W x 2.13 in H

Bussmann series high Short-Circuit Current Rating (SCCR) power distribution blocks provide up to 200 kA SCCR and help achieve compliance with National Electrical Code (NEC) and OSHA requirements by resolving a common SCCR "weak link" in industrial control panels. Available in 1, 2 and 3-pole panel mount versions with popular lineside and load side port configurations, these blocks are UL Listed and provide the requisite spacing between uninsulated opposite polarities or ground by meeting the UL 1953 1 in through air and 2 in over surface for 301 to 600 V applications.

Features

  • PDBs are often an assembly's lowest rated component or features weak link and may limit the assembly SCCR to only 10 kA, eliminate this weak link with these new, higher rated PDBs
  • By replacing a low rated PDB with a new Cooper Bussmann high SCCR PDB, an assembly can achieve a higher SCCR for more installations flexibility
  • IP20 finger safe enclosure

Specifications

GTIN: 00051712637787

UNSPSC: 39121629

Country of Origin: Mexico

Type
Barrier
Wire Size
8 to 2/0 AWG Line Cu, (4) 14 to 4 AWG Cu Load
Number of Poles
3
Fuse Type
Class CC
Color
Black
Voltage Rating
600 VAC/VDC
Short Circuit Current Rating
100/200 kA
Dimensions
2.88 in L x 4.27 in W x 2.13 in H
Secondary Connection/Pole
(4) Box Lug
Series
PDB
Material
Aluminum
Amperage Rating
175 A
Primary Connections/Pole
(1) Box Lug
Finish
Tin Plated
BABA Compliant
No
Sold as
EACH
