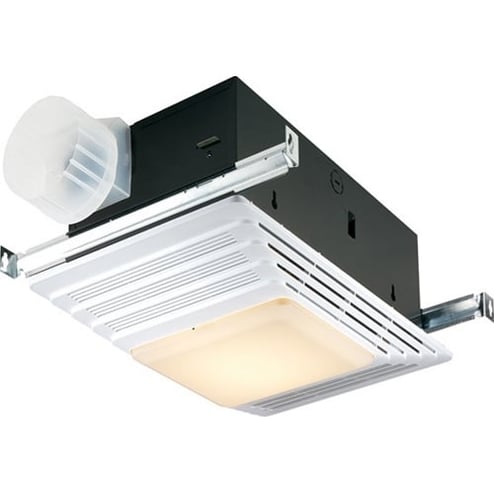

Broan® 655 HeaterFanLight Combo, 70 cfm, 4 in Dia Duct, 100 W, 120 VAC, 1300 W
Broan® 655 HeaterFanLight Combo, 70 cfm, 4 in Dia Duct, 100 W, 120 VAC, 1300 W
MPN 655
ASPN BROA655
UPC 026715002542
Description
Features
- Designer styled white polymeric grille complements virtually any decor
- Adjustable mounting brackets span upto 24 in
- Low sound, high performance blower wheel
- Plug-in, permanently lubricated motor with resilient anti-vibration mounts
- 1300 W heater with metal blower wheel for efficient, even heating
- Polymeric damper/duct connector with 2 in L tapered sleeve and no metallic clatter
- Compact 23 ga steel housing finished with electrically bonded epoxy paint
- For installation in ceilings upto 12/12 pitch
- Suitable for use in insulated ceilings (Type IC)
- Use supply wiring rated for at least 90 deg C
Specifications
GTIN: 00026715002542
UNSPSC: 40101502
Country of Origin: United States of America (the)
| Color | White |
|---|---|
| Flow Rate | 70 cfm |
| Voltage Rating | 120 VAC |
| Lighting Type | Incandescent |
| Heater Wattage | 1300 W |
| BABA Compliant | No |
| Duct Diameter | 4 in |
| Grille Size | 16-3/4 in L x 10-5/8 in W x 2-1/8 in H |
| Amperage Rating | 12.8 A |
| Housing Size | 14-1/4 in L x 8-1/4 in W x 5-3/4 in H |
| Lamp Wattage | 100 W |
| Mounting Type | Ceiling |
| Humidity Sensing | No |
| Housing Material | Steel |
| Grille Material | Polymer |
