Description

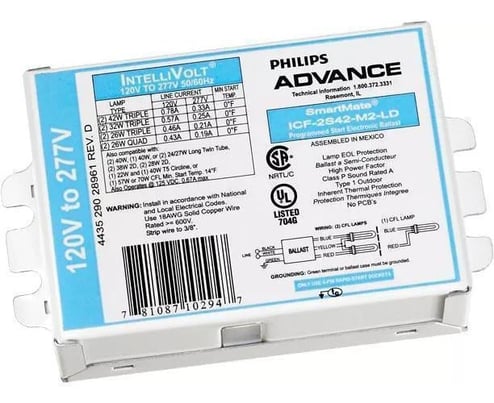

Offering maximum versatility the Philips Advance family of SmartMate® electronic ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple tube, circline, 2D and long twin tube lamps. Representing an innovative breakthrough in CFL ballast technology, SmartMate® ballasts energy efficient design, compact and lightweight housing and user-friendly features make SmartMate® ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement. SmartMate® ballasts are ideal in such applications as restaurants, reception areas, conference and meeting rooms, hotel and convention center ballrooms and houses of worship, as well as in place of incandescent down lighting systems.
Features
- Series lamp connection
- Blue color label identification
- 20 to 24 dB average ambient noise level
- High power factor
- Length mounting feet with SmartMate® dual entry color coded connectors
- IntelliVolt technology (120 to 277 VAC)
- Color coded connectors
- 1 or 2-lamp operation
- Operates multiple lamp wattages
- Reduces SKU requirements and inventory costs
- Enhances wiring accuracy and ease of assembly/installation
- Eliminates interference with infrared systems, anti-theft devices or other electronic equipment
Specifications
GTIN: 00781087107447
UNSPSC: 39111801
Country of Origin: United States of America (the)
| Number of Lamps | 2 |
|---|---|
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 120 to 277 VAC |
| Width | 0 |
| Material | Metal |
| Total Harmonic Distortion | 10 % |
| Power Factor | 0.98 |
| Ballast Factor | 0.97 |
| BABA Compliant | No |
| Temperature Range | 75 deg C |
| Wattage | 93 W |
| Start Type | Programmed |
| Lamp Type | CFL |
| Amperage Rating | 0.33 to 0.78 A |
| Lamp Wattage | 42 W |
| Dimensions | 4.55 in L x 3 in W x 1.29 in H |
| Lamp Base Type | GX24Q 4-Pin |
| Type | Electronic |
| Sold as | EACH |
