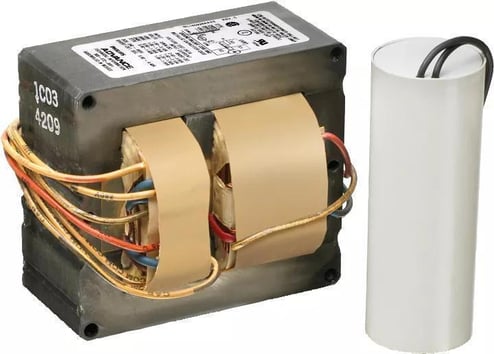

Advance 71A8443001D CoreCoil HID Magnetic High Pressure Sodium Ballast Kit, High Pressure Sodium Lamp, 400 W, 480 VAC, Pulse, 1 Ballast Factor
Advance 71A8443001D CoreCoil HID Magnetic High Pressure Sodium Ballast Kit, High Pressure Sodium Lamp, 400 W, 480 VAC, Pulse, 1 Ballast Factor
MPN 71A8443001D
ASPN ADV71A8443001D
UPC 781087844311
Description
Features
- 0.5 mm L wire strip
- Stranded wire
- CWA type circuit
- 4 x 4 in core
- 12 in L wire by color
- Magnetic HID ballast
- 105 deg C igniter temperature
- 55 Mfd, 240 VAC, 105 deg C capacitor
- 6 to 7.4 A secondary short circuit current
- 0.55 A (open circuit), 0.75 A (starting), 0.5 to 0.8 A (short circuit) current
- Constant wattage deviation within trapezoid
- Remote wiring configuration allowed
- 2 ft ballast lamp distance remote wiring
Specifications
GTIN: 00781087844311
UNSPSC: 39101902
Country of Origin: China
| Number of Lamps | 1 |
|---|---|
| Frequency Rating | 60 Hz |
| Ballast Factor | 1 |
| BABA Compliant | No |
| Power Factor | 1 |
| Minimum Starting Temperature | -40 deg F |
| Start Type | Pulse |
| Thermal Protection | Class P |
| Voltage Rating | 480 VAC |
| Dimmable | No |
| Amperage Rating | 0.97 A |
| Type | Core/Coil HID Magnetic |
| Wattage | 464 W |
| Dimensions | 4.75 in L x 4.3 in W x 4.25 in H |
| Lamp Type | High Pressure Sodium |
| Lamp Wattage | 400 W |
| Ballast Grade | ANSI S51-M169 |
| Sold as | EACH |
